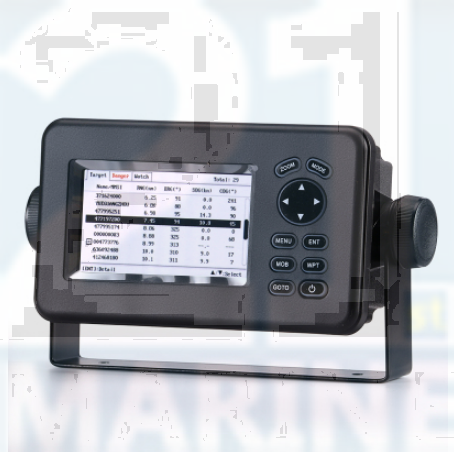

Matsutec HP-528A 4.3-inch Color LCD Chart Plotter Built-in Class B AIS Transponder Combo High Sensitivity Marine GPS Navigator

Matsutec HP-528A 4.3-inch Color LCD Chart Plotter Built-in Class B AIS Transponder Combo High Sensitivity Marine GPS Navigator

Be the first to review this product

Availability: In stock

$350.00
OR

Quick Overview

Matsutec HP-528A 4.3-inch Color LCD Chart Plotter Built-in Class B AIS Transponder Combo High Sensitivity Marine GPS Navigator

Matsutec HP-528A 4.3-inch Color LCD Chart Plotter Built-in Class B AIS Transponder Combo High Sensitivity Marine GPS Navigator

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

color LCD AIS transponder, AIS transponder, AIS display transponder, AIS/GPS transponder, AIS receiver, class B AIS
Matsutec

  • HP-528A is a Ais Transmitter, Also is a marine gps Navigator
  • 4.3" color LCD diaply AIS transponder combo with GPS navigator
  • This pack includes GPS antenna with cable 10m
  • CE
  • 4.3-inch Color LCD GPS Chart Plotter with Internal GPS Antenna and Built-in Class B AIS Transponder Combo High Sensitivity Marine GPS Navigator ...

Feature

Radar Plotter display and multi-lists display
Detailed target information display
Watch function for friend ships and buoy
Visual and audio alarm of Collision,SART,MOB,
Watch target lost, watch target deviation etc.
Safety and normal Message display
External Alarm output port

Stores up to 10,000 waypoints,100 routes and 3000 tracks
Visual and audio alarm of arrival/Anchor,XTE , Speed,Trip,Odometer etc.
Man Overboard feature and quick GOTO mark set

The HP-528A is a class B AIS transponder for Non-SOLAS vessels such as pleasurecraft, work-boat, fishing boat etc small boat.
Special design Watching dispaly to monitor Fishing net buoy, friendly ships etc. External Alarm for MOB and Collision-Risk management.

Feature

To AIS
1. Detail Target list and Radar overview
2. Watching disaply to monitor important subject, example: Fihsing net buoy, Friend ship etc
3. External Alarm (Buzzer)
4. Low cost, reduced size and easy installation make the HP-528A ideal to meet your budgets and demands of owners and vessel operators

To GPS
1. 4.3" Sunlight Viewvable color LCD (Brightness: 500 cd)
2. GOTO track navigation
3. Stores up to 10,000 marks/ waypoints, 100 routes and 3,000 track points
4. Delicated Man Over Board Button (MOB)
5. Support NMEA 0183 ver 2.0
6. 7 display modes available, including 2 user-customized modes
7. SBAS capable for better measurement

Equipment list ( standard):
1. Dispaly unit HP-528A
2. Antenna unit HA-017 with cable 10m
3. Power canle, 2m
4. Standard spare parts and installation material
5. Operator manual




SPECIFICATION



DISPLAY

Screen size: 95.04(W) x 53.85(H) mm

Pixel number: 480 x 272 pixels

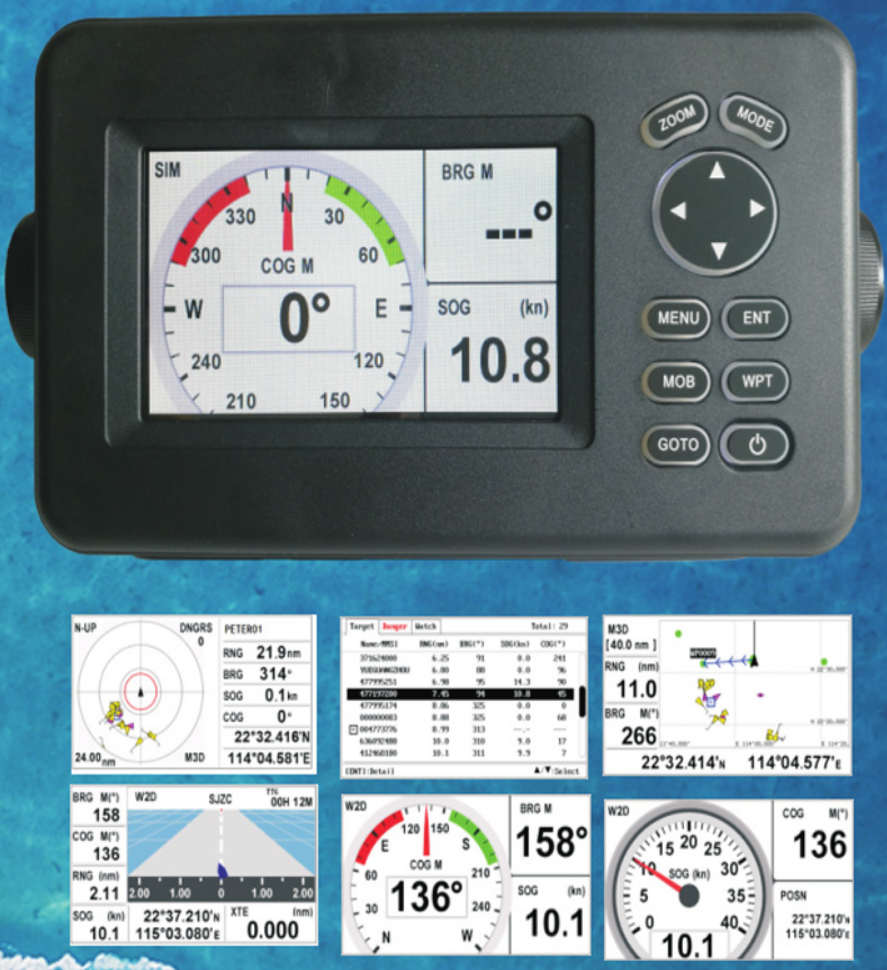

Display mode: Plotter, AIS radar, AIS lists,Highway, Steering, Nav data, Satellite, User display 1, User Display 2

Memory capacity:

  • 3000 ship’s track points

  • 10000 marks and waypoints with comments

  • 100 routes, 30 waypoints / route

GPS Alarm: Arrival, Anchor watch, XTE, Speed,SBAS, Time, Trip, Odometer.

AIS Alarm: Collision, AIS SART, EPIRB, MOB,Lost, Position

AIS Message: Receive Broadcast / Addressedmassage

Projection: Mercator projection

Plot Scales: 0.01nm ~ 320nm

AIS Radar View Scales: 0.125, 0.25, 0.5,0.75, 1.5, 3, 6, 12, 24 nm



AIS MAINSPEC.

Standards:

  • IEC 62287-1

  • IEC 62287-2

  • ITU 1371-3

  • IEC61993-2

  • IEC 61162-1

  • IEC 60945

Frequency:

CH87 – 161.975 MHz

CH88 – 162.025 MHz

Channel bandwidth: 25 Khz

Frequency Stability: ≤2.5 PPM

Modulation: AIS GMSK

Data Rate: 38400 bps



AISTRANSMITTER

Power output: 2W ± 1.5 Bm

Power Delay:

  • Rise delay ≤ 313 US

  • Fall delay ≤ 313 US

Stray Power: ≤ -36 dBm



AIS RECEIVER

Sensitivity: ≤ -107 dBm

Max Usable Sensitivity: PRT ≤ 20% at – 107dBm

Channel Rejection Ratio: ≤ - 10 dB

Adjacent Channel Selectivity: ≥ 70 dB

Intermodulation Selectivity: ≥ 65 dB

Blocking: ≥ 85 dB



GPS/SBAS

Receiver Type

  • GPS: 50 Channels, C/A code

  • SBAS: WAAS, EGNOS, MSAS, GAGAN

Receive Frequency: L1 (1575.42 MHz)

Time to First Fix:

  • Cold start: 32s

  • Hot Start:  1s

Tracking Velocity: 500m/s Max

Altitude: 50,000 m Max

Dynamics: ≤ 4g

Geodetic Systems: WGS-84 (and others)

Horizontal position:

  • GPS: 2.5 m

  • SBAS: 2.0 m

Velocity: 0.1m/s

Heading: 0.5 degrees



INTERFACE

Port: RS-232C

GPS Antenna Port: Female TNC Connector

VHF Antenna Port: Female Type M Connector(Optional)

Output Sentence:

  • REM1: DTM, GGA, GLL, RMB, RMC, VTG, ZDA

  • REM2: BWC, DTM, GGA, RMB, RMC, VTG, ZDA

  • AP: AAM, APB, BOD, BWC, BWR, GLL, VTG, XTE,ZDA

  • GPS: GGA, GPA, GSV, VTG

  • AIS: AIVDM, AIVDO, GGA, GSA, GSV, VTG, GLL,RMC



ENVIRONMENT

Temperature:

  • Display unit: - 15 C to + 55 C

  • Antenna unit: - 25 C to + 70 C

Waterproofing:

  • Display unit: IP56

  • Antenna unit: IPX6



POWERSUPPLY

Power Supply: 12 – 24 VDC: 0.24 – 0.12A



PHYSICAL

Size: 181 mm(W) x 143mm(H) x 83 mm(D)

Weight: 0.80 kg; 1.76 lb
