main product photo

8L stainless steel Water automatic supply pressure tank unit with Large flow diaphragm pump for RV yacht Electric booster stable pressure water supply system

Be the first to review this product
$380.00
In stock
SKU
M045
8L stainless steel Water automatic supply pressure tank unit with Large flow diaphragm pump for RV yacht Electric booster stable pressure water supply system
Add Wish ListAdd Compare

Share it:

8L stainless steel Water automatic supply pressure tank unit with Large flow diaphragm pump for RV yacht Electric booster stable pressure water supply system

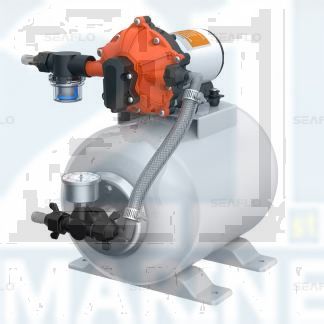

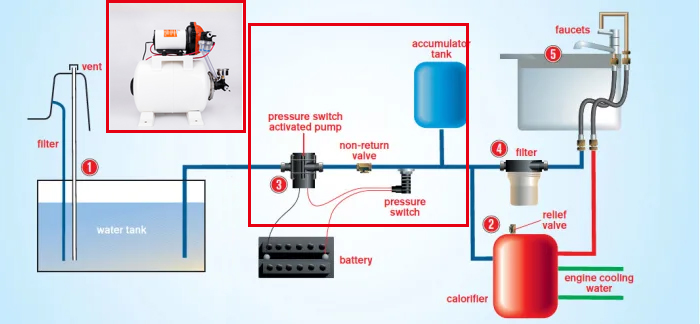

 A fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer. The set consists of a 5 chamber diaphragm pump, strainer and pre-pressurized accumulator tank with quick connect electrical connections on a rubber mounted board. Serves 3 or more 1/2" (13mm) outlets.

FEATURES & BENEFITS



- Smoother flow, quieter water systems.



- Longer pump life, lower battery drain.

- Self-priming up to 6 feet(1.8m).

- Five chamber diaphragms for smooth and quiet operation.

- Can be installed vertically or horizontally accumulator tank.



- Can be installed vertically or horizontally.



- Maintenance free potable water quality accumulator tank.

- Complies with USCG 183.410 and ISO 8846 MARINE(Ignition Protection).

- 16 AWG, 4.5’’?long leads.





TYPICAL APPLICATIONS

Marine, RV, Filtration

PUMP
Type5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control TypePressure switch
Max Recommended Temperature60° C（140° F）
Priming Capabilities6 feet (1.8 m) suction lift
Re-start Pressure

Shut-off Pressure 60 PSI ：48 PSI ±5 PSI (±0.3 bar)

Inlet/Outlet Ports1/2"-14 MNPT
Weight11.9 lbs (5.4 kg)



MOTOR
Leads14 AWG, 13" (33 cm) long with 2-Pin connector/Leads
Duty CycleContinuous
Max.Amp Draw18.9 A
Fuse

28.4 A
